Fatigue Testing Machine Diagram

Rotating beam fatigue testing systems were first developed in the mid 1800s by a german railroad engineer named august wöhler.

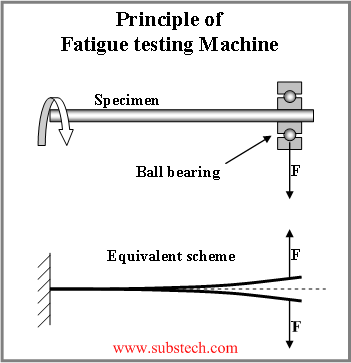

Fatigue testing machine diagram.

He designed the machine to test railroad car axles and investigate axle brake failures. Fatigue strength is thus of very great significance in machine design. The principles upon which that machine was developed still apply today. Electrodynamic testing machines are used to determine the durability of materials and components in the finite life fatigue and high cycle fatigue ranges.

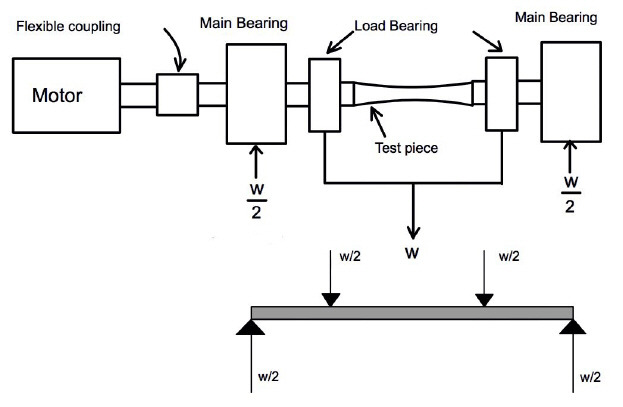

With the varying load to which most machines are exposed it is not the static break point but the fatigue limit which decides when a fracture occurs. Mt3012 e fatigue testing machine with pc interface and software. Balaji fatigue testing machine capacity 200 kgcmthe machine is designed determining the fatigue properties of metals and alloys reverse bending cantilever type machine where the specimen is subjected to rotation at 2800 rpm with both ends held firmly between the gripping chucks with weights suspended through a lever. Rotatory bending machine the purpose of the rotating bar bending fatigue test is to determine the bending fatigue strength properties under rotating load.

Materials fatigue performance is commonly characterized by an s n curve also known as a wöhler curve this is often plotted with the cyclic stress s against the cycles to failure n on a logarithmic scale s n curves are derived from tests on samples of the material to be characterized often called coupons or specimens where a regular sinusoidal stress is applied by a testing machine.
